The following information is valid for each satellite image listed in the table below:
data: Landsat 5 Thematic Mapper Satellite Scenes
geographic location: Geographic coordinates (latitude and longitude) describe the center of a scene. Each scene encircles an area of 185 km * 185 km. Each scene has 7 spectral bands (red/1, green/2, blue/3 of visible light, near infrared/4, two different bands of short wave infrared/5&7, thermal infrared/6).
The storage units are 9 track tapes (6250 bpi), each scene needs 300 MByte.
Path, Row: The World- Reference- System of satellite trajectories are characterized unambiguously through these two parameters. (There are general maps showing satellite trajectories.)
Acq.- Date (acquisition date): date of scene recording
Latitude, Longitude: geographical location of scene center, area extends approximately 90 km around central coordinates
Elevation, Azimuth: elevation and azimuth at date and time of acquisition
file size: 8.2 MByte
download: file
Satellite Mosaic (northern working area)
Satellite Mosaic (southern working area)
Index | Path | Row | Acq. Date | Latitude | Longitude | Elevation | Azimuth |
1 | 002 | 072 | 10.11.86 | -17.3471 | -69.9199 | 55 | 95 |
2 | 002 | 073 | 28.03.85 | -18.7877 | -70.2034 | 46 | 63 |
3 | 002 | 074 | 21.01.90 | -20.2317 | -70.5767 | 50 | 97 |
4 | 001 | 072 | 30.05.87 | -17.3461 | -68.3934 | 36 | 44 |

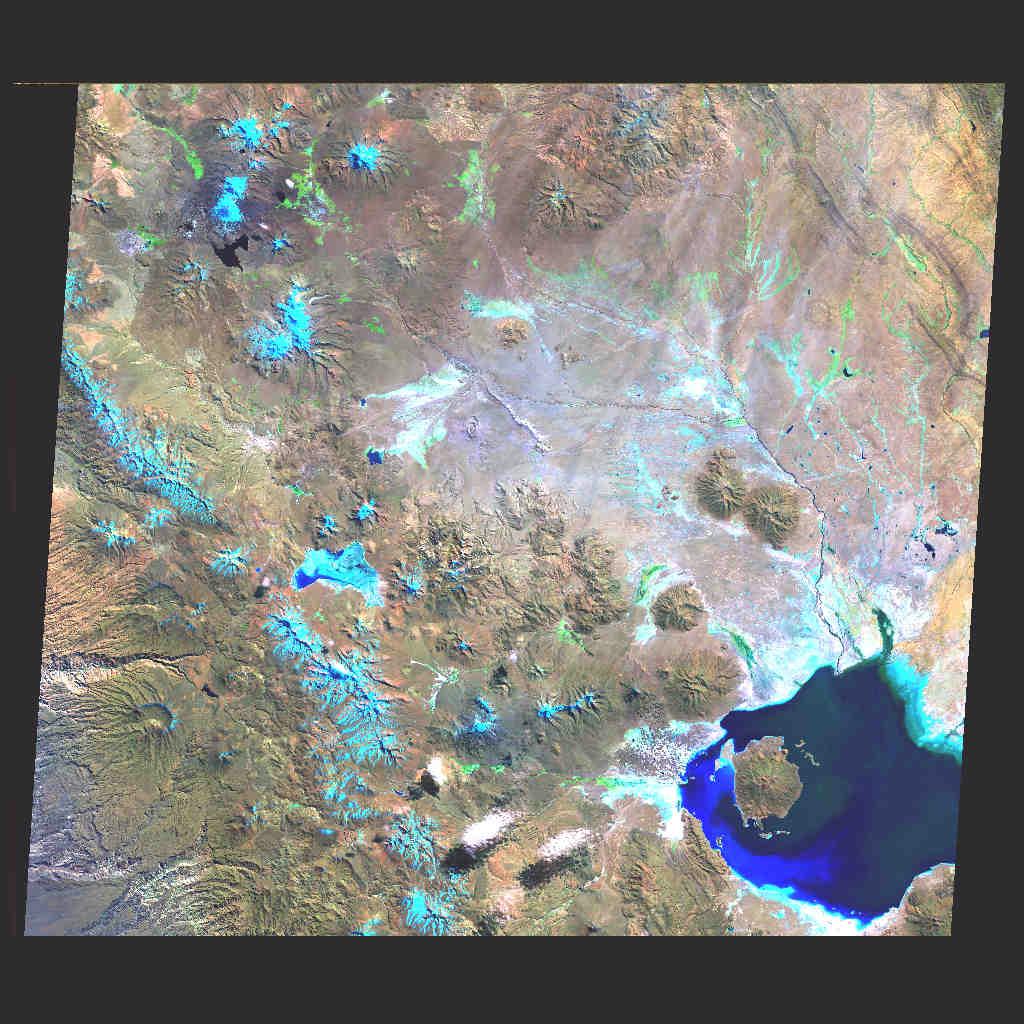

5 | 001 | 073 | 08.07.84 | -18.7810 | -68.6991 | 33 | 44 |
6 | 001 | 074 | 02.10.86 | -20.2349 | -69.0059 | 50 | 70 |
7 | 001 | 075 | 07.02.87 | -21.6656 | -69.3569 | 48 | 89 |

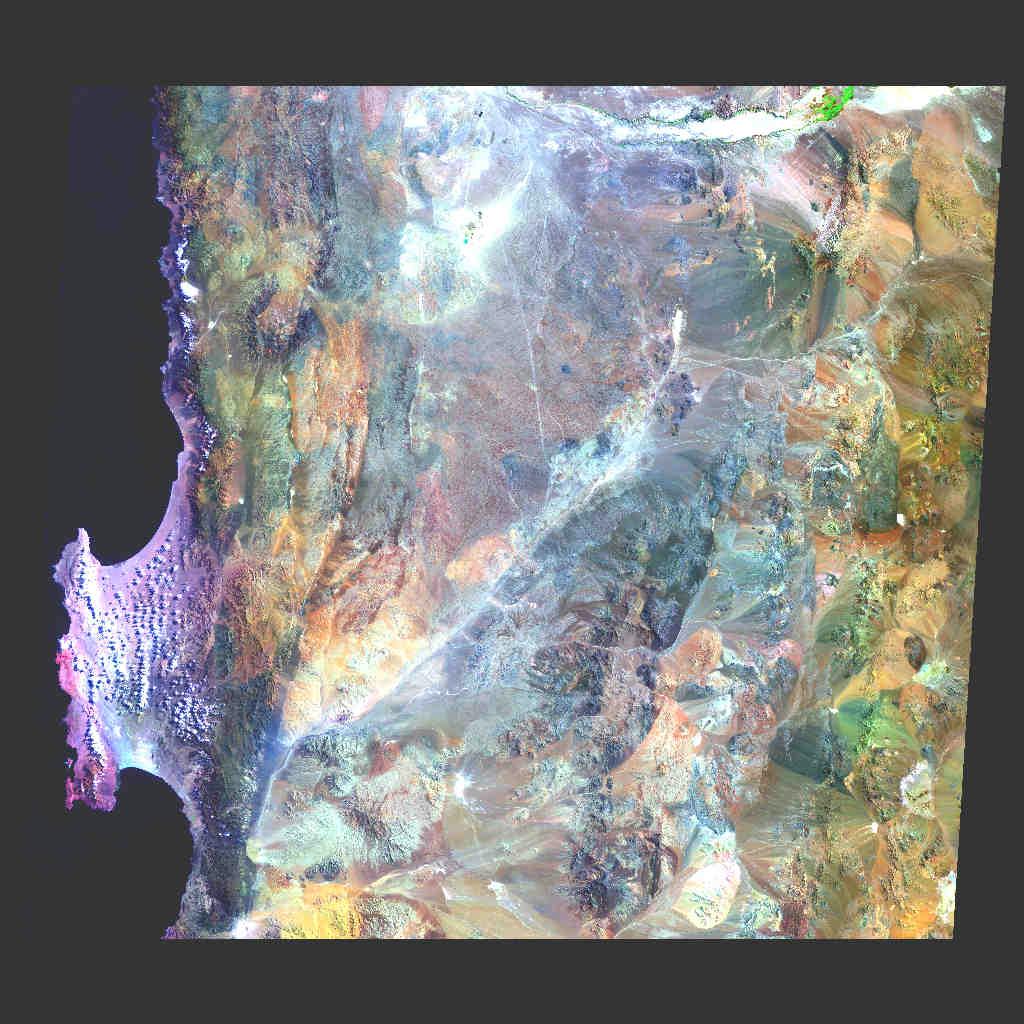

8 | 001 | 076 | 05.03.85 | -23.1197 | -69.6786 | 47 | 73 |
9 | 001 | 077 | 04.02.86 | -24.5544 | -70.0192 | 50 | 86 |
10 | 001 | 078 | 04.02.86 | -26.0039 | -70.3728 | 49 | 85 |

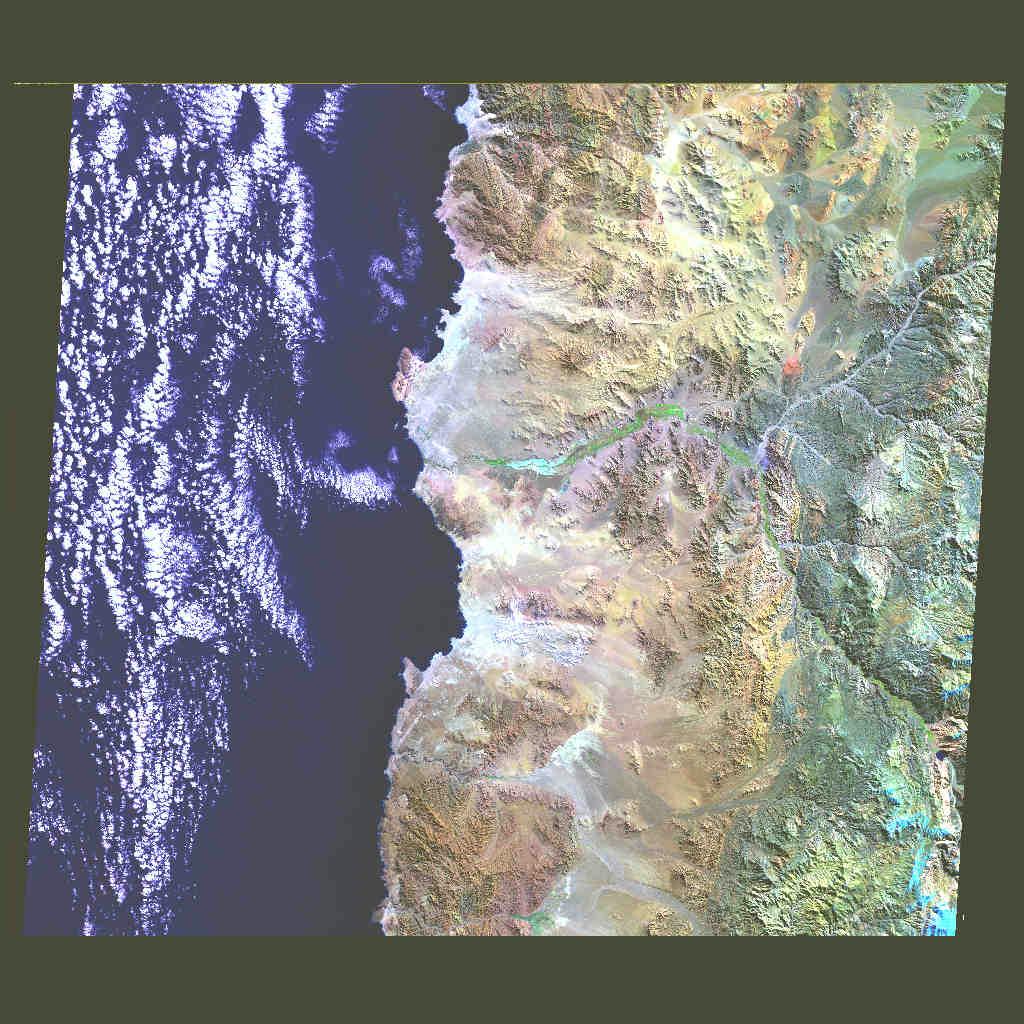

11 | 001 | 079 | 27.07.85 | -27.4333 | -70.7666 | 0 | 0 |
12 | 001 | 080 | 07.02.87 | -28.8666 | -71.1333 | ||
13 | 001 | 081 | 07.02.87 | -30.3000 | -71.5166 | ||
14 | 001 | 086 | 23.02.90 | -37.4833 | -73.5000 | 0 | 0 |
15 | 233 | 073 | 26.02.85 | -18.7834 | -67.1500 | ||
16 | 233 | 074 | 12.01.86 | -20.2339 | -67.4611 | 53 | 99 |
17 | 233 | 075 | 12.01.86 | -21.6697 | -67.7956 | 53 | 98 |

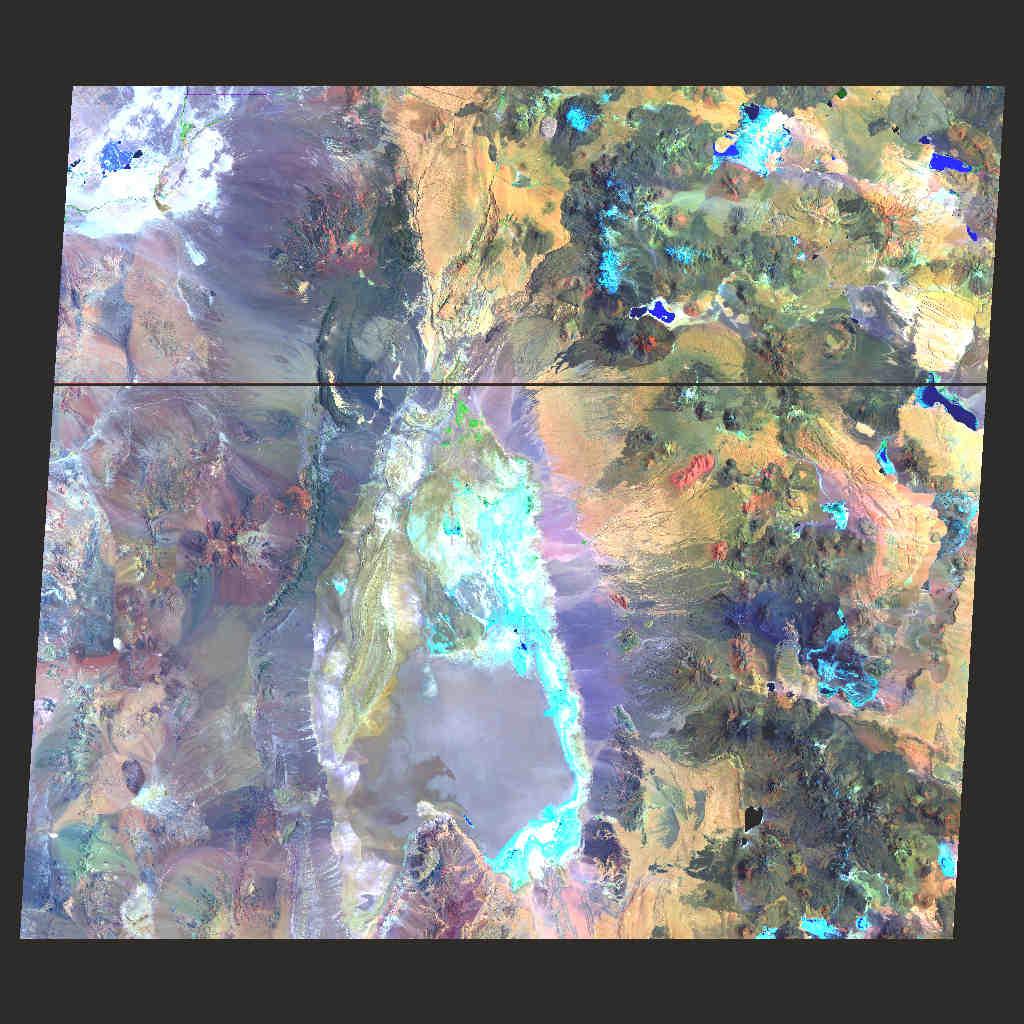

18 | 233 | 076 | 12.01.86 | -23.1183 | -68.1380 | 53 | 96 |
19 | 233 | 077 | 12.01.86 | -24.5525 | -68.4825 | 52 | 94 |
20 | 233 | 078 | 14.12.86 | -25.9844 | -68.7782 | 57 | 93 |
21 | 233 | 079 | 30.03.85 | -27.4333 | -69.1833 | 0 | 0 |

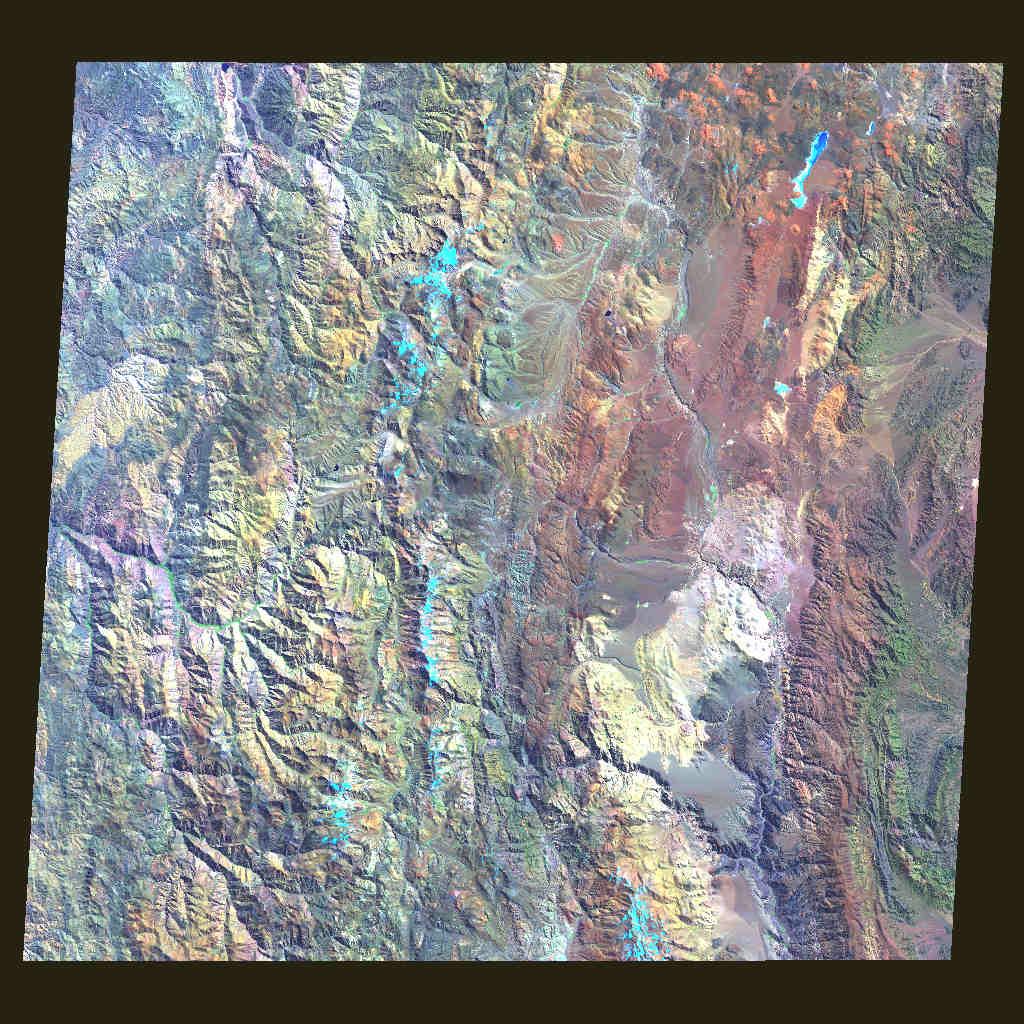

22 | 233 | 080 | 02.04.86 | -28.8667 | -69.5667 | ||
23 | 233 | 086 | 13.02.89 | -37.4667 | -72.0166 | ||
24 | 232 | 073 | 30.06.86 | -18.7833 | -65.6334 | ||
25 | 232 | 074 | 27.04.86 | -20.2333 | -65.9667 | ||
26 | 232 | 075 | 27.04.86 | -21.6627 | -66.2938 | 38 | 50 |

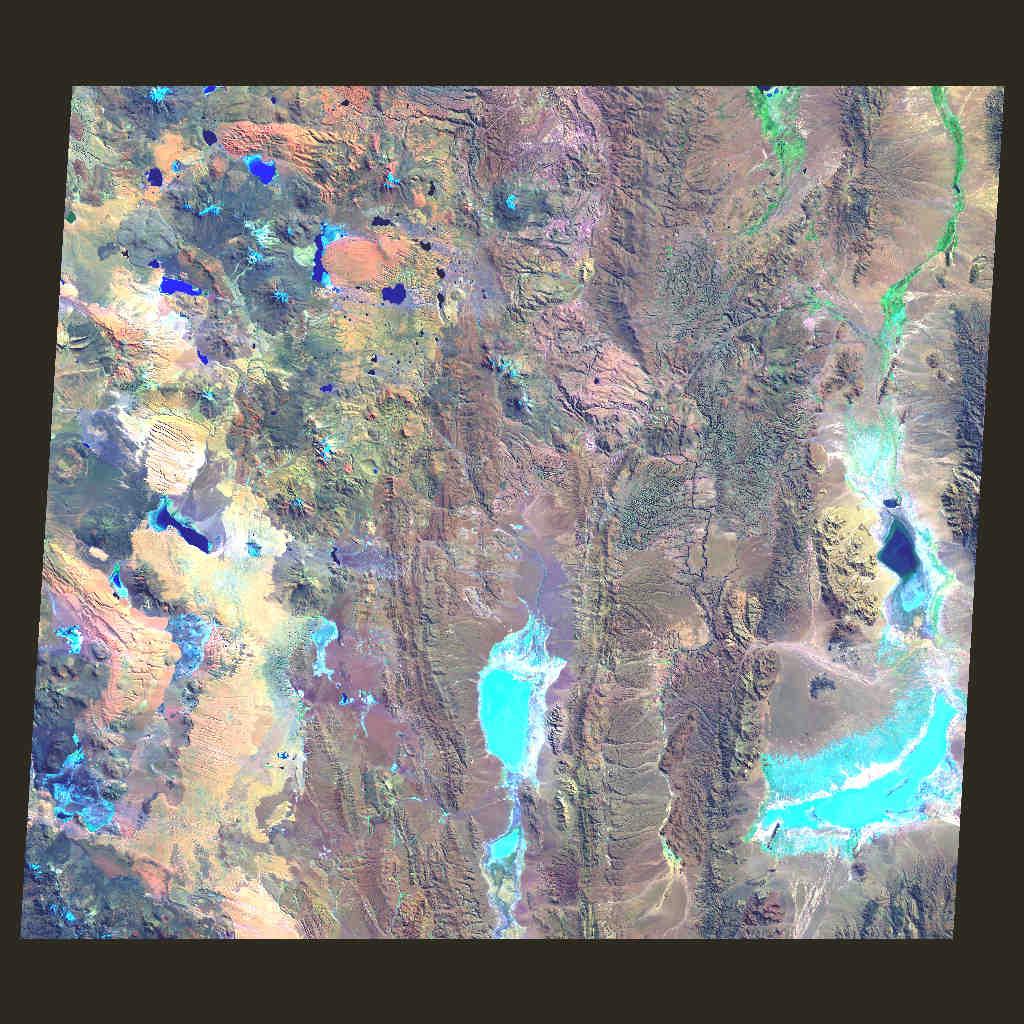

27 | 232 | 076 | 27.04.86 | -23.1114 | -66.6356 | 37 | 49 |
28 | 232 | 077 | 27.04.86 | -24.5456 | -66.9797 | 36 | 49 |

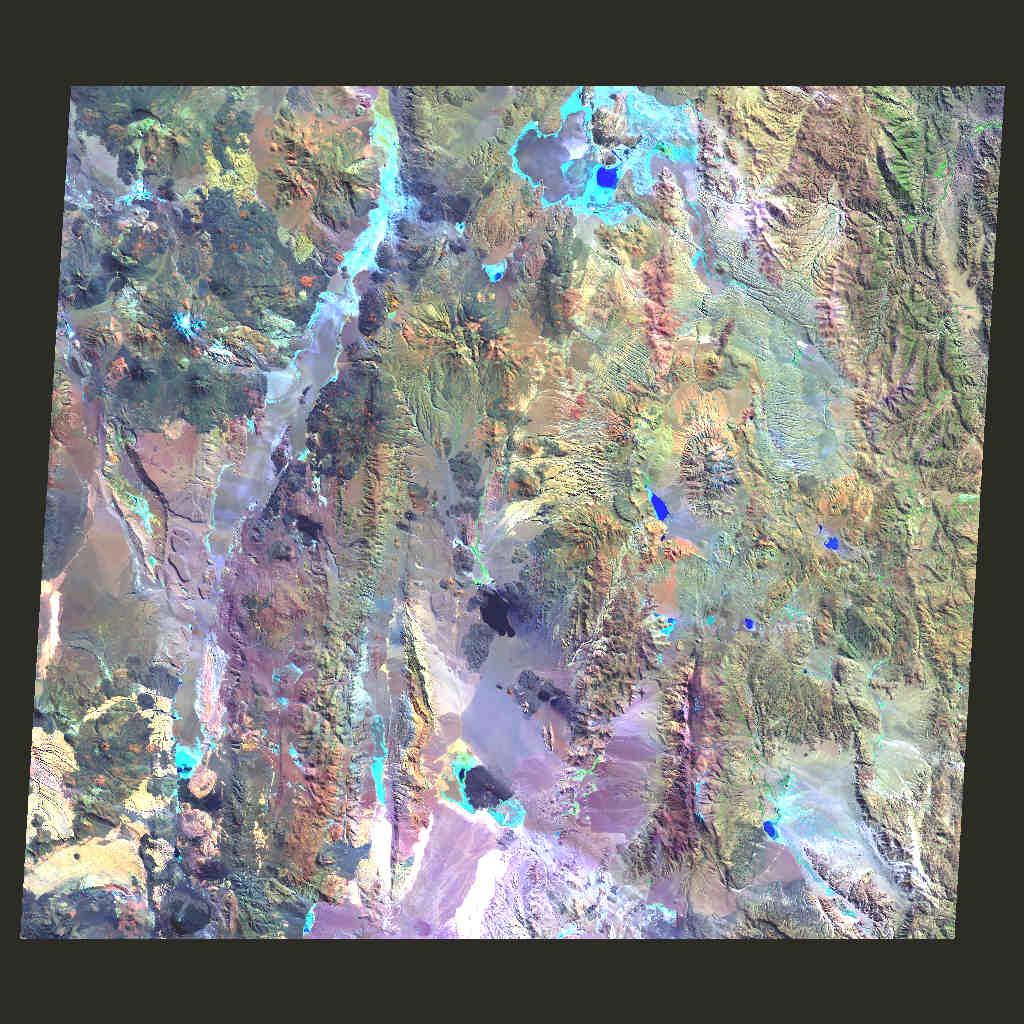

29 | 232 | 078 | 27.04.86 | -25.9950 | -67.3328 | 35 | 48 |
30 | 232 | 079 | 27.04.86 | -27.4333 | -67.6833 | 0 | 0 |
31 | 232 | 080 | 27.04.86 | -28.8666 | -68.0499 | ||
32 | 232 | 086 | 13.03.90 | -37.4833 | -70.4166 | ||
33 | 232 | 087 | 13.03.90 | -38.9000 | -70.8333 | ||
34 | 232 | 089 | 07.03.85 | -41.7666 | -71.7333 | ||
35 | 231 | 073 | 06.07.85 | -18.7534 | -64.0166 | ||
36 | 231 | 074 | 11.09.86 | -20.2333 | -64.3499 | ||
37 | 231 | 075 | 11.09.86 | -21.6715 | -64.6832 | 43 | 60 |
38 | 231 | 076 | 11.09.86 | -23.1225 | -65.0253 | 43 | 59 |
39 | 231 | 077 | 11.09.86 | -24.5569 | -65.3686 | 41 | 58 |
40 | 231 | 078 | 11.09.86 | -26.0064 | -65.7219 | 41 | 58 |
41 | 231 | 079 | 28.02.85 | -27.4333 | -66.0999 | 0 | 0 |
42 | 231 | 080 | 28.02.85 | -28.8667 | -66.4833 | ||
43 | 230 | 073 | 02.07.86 | -18.7833 | -62.5333 | ||
44 | 230 | 074 | 02.07.86 | -20.2330 | -62.8667 | ||
45 | 230 | 075 | 30.09.84 | -21.6500 | -63.2833 | ||

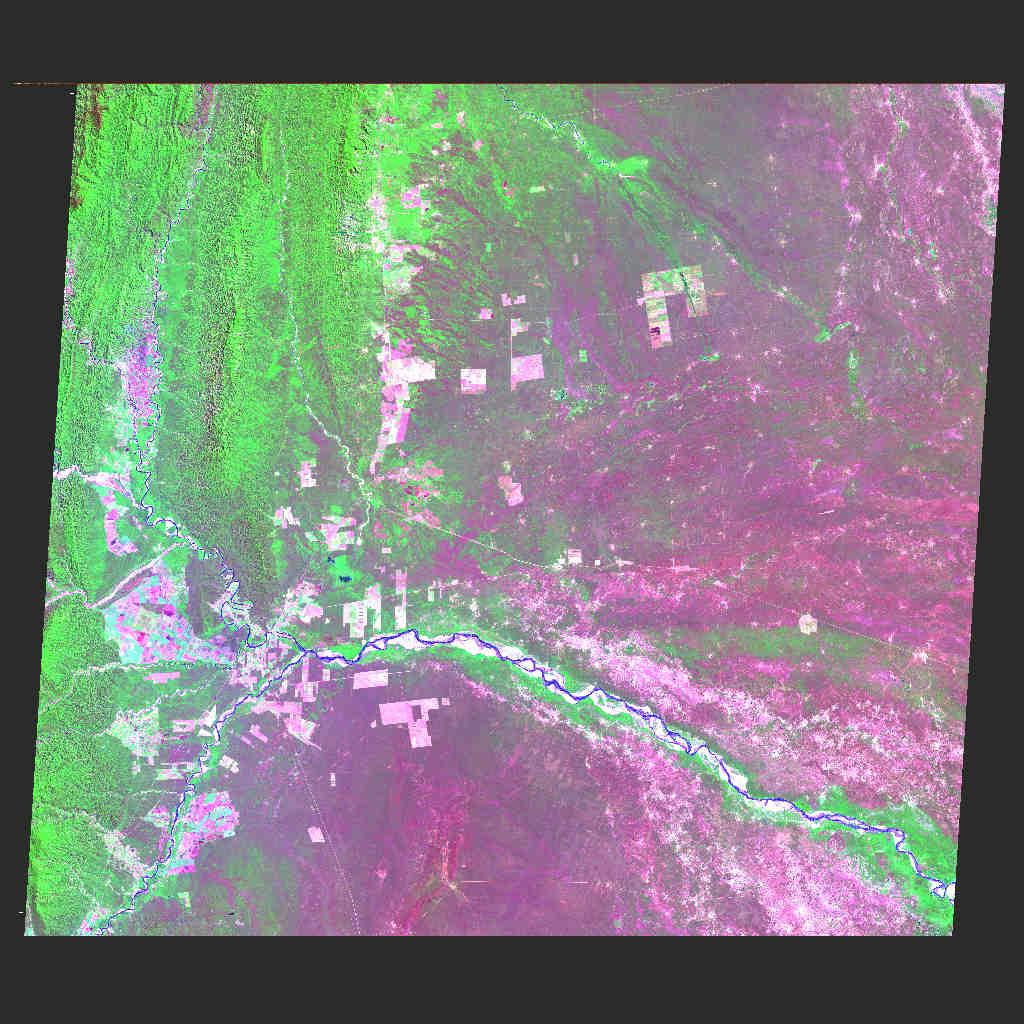

46 | 230 | 076 | 30.09.84 | -23.1000 | -63.6333 | ||
47 | 230 | 077 | 30.09.84 | -24.5333 | -63.9833 | ||
48 | 230 | 078 | 30.09.84 | -25.9833 | -64.3333 | ||
49 | 230 | 079 | 30.09.84 | -27.4167 | -64.6833 |
note: to view image of TM scene (appr. 150 to 300 kByte) click on TM index number
